Case Study: Ra 0.3 μm Finish on AISI 1045 Steel

Case study of an AISI 1045 steel component achieving Ra 0.3 μm through turn-mill machining, with concentricity control, plating allowance, dimensional inspection, and reduced secondary grinding.

Project Overview

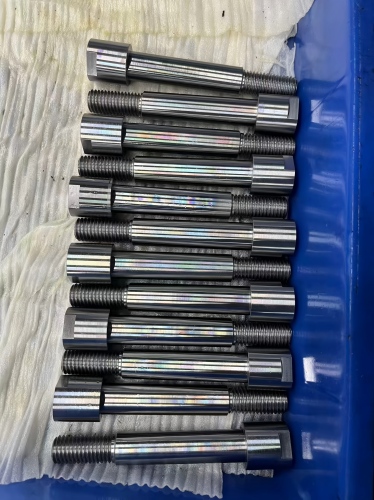

Zync Precision manufactured a custom AISI 1045 steel component requiring complex turned and milled features, controlled concentricity, and an exceptionally smooth machined surface.

Material: AISI 1045 medium-carbon steel

Manufacturing Process: CNC turn-mill machining

Surface Finish: Ra 0.3 μm achieved on specified machined surfaces

Secondary Treatment: Color zinc plating according to project requirements

The component included a threaded end, precision shaft, multiple stepped diameters, and milled flats on the head. Completing these features in separate setups could introduce concentricity and positioning errors, so a turn-mill process was selected to reduce re-clamping.

Technical Challenges

Achieving a Fine Surface Finish

AISI 1045 steel offers good strength, machinability, and wear resistance, but achieving a very low surface roughness requires careful control of tooling, machine stability, cutting parameters, chip evacuation, and vibration.

The customer drawing specified critical surface and dimensional requirements. Process development was therefore focused on producing a stable finish while maintaining the required geometry.

Complex Turned and Milled Features

The component combined several manufacturing requirements:

• External threads • Precision cylindrical surfaces • Multiple stepped diameters • Milled flats on the component head • Tight positional relationships between features • Controlled concentricity between the shaft and head

Producing these features across multiple machines would increase handling and alignment risk.

Plating Allowance

Color zinc plating adds material to the component surface. The coating thickness can affect external dimensions, thread fit, and other critical features.

Pre-plating dimensions therefore needed to account for the specified coating requirement. Final dimensions and inspection criteria were evaluated according to the customer drawing and approved process.

Turn-Mill Manufacturing Strategy

A CNC turn-mill machining center was used to complete the principal turned and milled features in one coordinated setup.

This approach provided several advantages:

• Reduced re-clamping between turning and milling operations • Improved positional consistency between related features • Better control of shaft-to-head concentricity • Lower risk of handling and alignment errors • More efficient production of complex geometries • Stable repeatability for future orders

The process sequence was planned around critical datums, surface-finish requirements, tool access, and inspection points.

Tooling and Cutting-Parameter Control

The machining process used appropriate finishing tools and controlled cutting conditions for AISI 1045 steel.

Key considerations included:

• Tool geometry and edge condition • Machine and workholding rigidity • Cutting speed and feed rate • Depth of cut during finishing passes • Chip control and evacuation • Coolant application • Vibration and tool runout • Consistent finishing allowance

Finishing parameters were adjusted during process validation to achieve the required surface quality without compromising dimensional accuracy.

Surface-Finish Control

The Ra 0.3 μm result applied to the specified machined surfaces evaluated for this project. Surface roughness capability depends on the component geometry, material condition, feature accessibility, tooling, and inspection method.

For new projects, Zync Precision reviews the required surface finish during quotation and confirms feasibility based on the drawing and application.

Inspection and Quality Control

Inspection was integrated into the manufacturing process.

Quality-control activities included:

• Incoming material verification • First-article dimensional inspection • In-process measurement of critical diameters • Thread inspection • Concentricity and runout verification • Inspection of milled features • Surface-roughness measurement on specified surfaces • Pre-plating dimensional verification • Final inspection according to project requirements

Inspection reports and project-specific quality documentation can be provided according to customer requirements.

Zync Precision operates ISO 9001 and IATF 16949 certified quality management systems.

Project Results

The approved turn-mill process achieved the required component geometry and a measured surface roughness of Ra 0.3 μm on the specified machined surfaces.

The project demonstrated the following results:

• Complex turned and milled features completed in a coordinated setup • Reduced re-clamping and alignment risk • Controlled concentricity between related features • Stable critical dimensions before plating • Ra 0.3 μm finish achieved on specified surfaces • Inspection completed according to project requirements • A repeatable process established for future production

The result shows how turn-mill machining, appropriate tooling, controlled finishing parameters, and dimensional inspection can support demanding steel-component applications.

Applications

Precision turn-mill components made from AISI 1045 steel may be used in:

• Industrial automation equipment • Railway transportation systems • Automotive equipment • Hydraulic and pneumatic assemblies • Machinery and production equipment • Fixtures and tooling • Motion-control systems • Custom industrial assemblies

Actual material, heat treatment, coating, tolerances, and inspection requirements should be selected according to the component application.

Request a Turn-Mill Machining Quote

Zync Precision provides custom CNC turning and turn-mill machining for prototypes, low-volume projects, and repeat production.

For a manufacturing review and quotation, please provide:

• 2D drawings or 3D CAD files • Material and material condition • Required quantity • Critical dimensions and tolerances • Surface-roughness requirements • Heat-treatment or plating requirements • Inspection and documentation requirements • Expected delivery date

Email: emily@zyncprecision.com

Our engineering team will review manufacturability, surface-finish feasibility, inspection requirements, production process, and expected lead time before quotation.
